Cartesian Unit Robot

Cartesian WTR

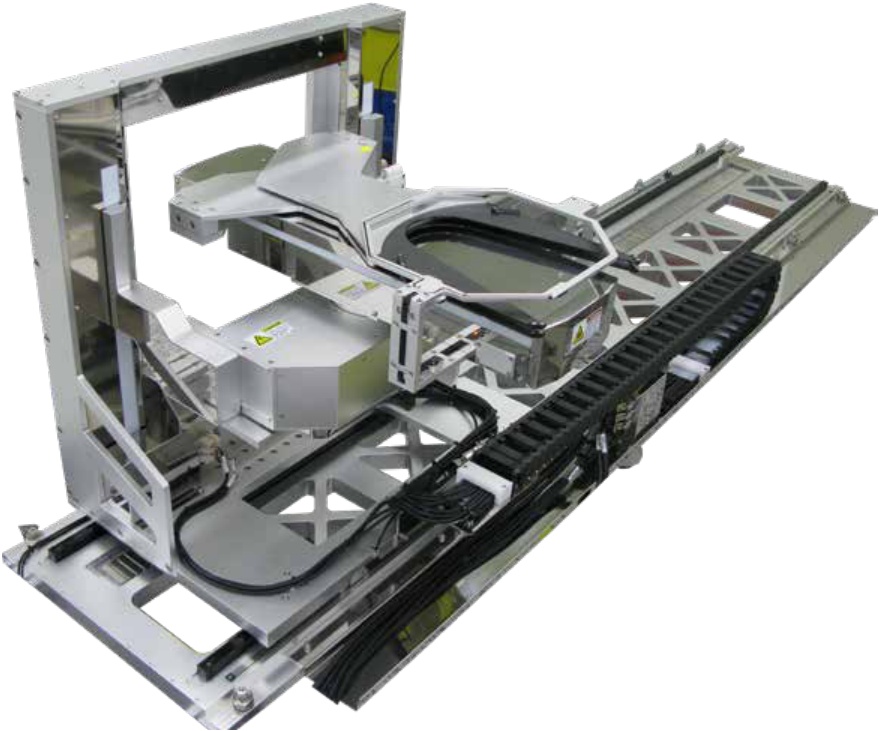

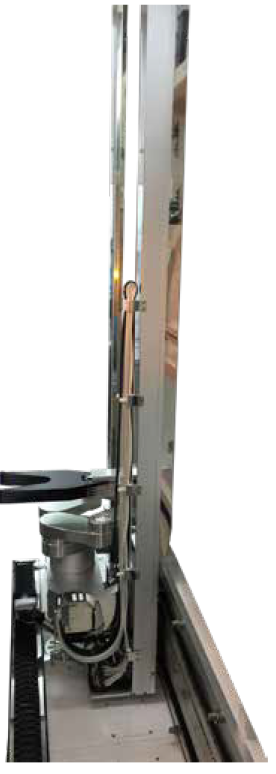

Robots and Design's Cartesian Unit Robot uses a Cartesian coordinates structure for all axes, enabling high speed and precise wafer handling. It can be manufactured from a single Z-axis type to a multi type with up to 5 axes.

*Optional: Traverse axis, Step availability (1 to 3 steps), Mapping Sensor

Cartesian coordinates structure for all axes
High speed and precise wafer handling
Short tact time and increase of throughput
Available to use in lower passline

Download Brochure

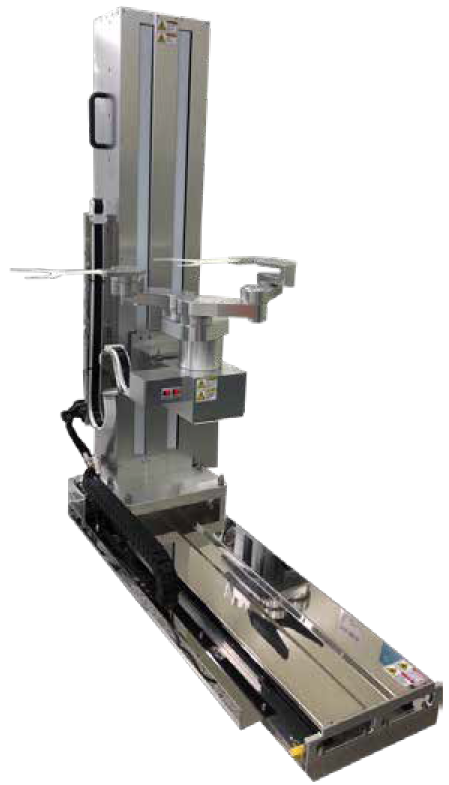

Cartesian Unit Robot — Specification
	Cartesian Unit Robot
Motion Range
R1,R2 axis (Extension)	680 mm
T axis (Rotation)	330 deg
Z axis (Up/down)	1550 mm
X axis (Traverse) Optional	○
Performance - Max Speed
R1,R2 axis (Extension)	247 deg/sec
T axis (Rotation)	235 deg/sec
Z axis (Up/down)	555 mm/sec
X axis (Traverse)	1500 mm/sec
Repeatability
R1,R2 axis (Extension)	±0.05 mm
T axis (Rotation)	±0.01 deg
Z axis (Up/down)	±0.05 mm
X axis (Traverse)	±0.02 mm
